Construction and Layout of the Battery

The German military begins fortifying Pointe du Hoc in late 1942 as part of a wider coastal defence strategy. The battery is designated Widerstandsnest 75, or Stützpunkt 75, and is manned by the Batterie 2 of Heeres-Küsten-Artillerie-Abteilung 1260. Organisation Todt oversees the construction, erecting reinforced concrete bunkers and firing positions along the cliff-top.

By mid-1943, six long-range 155-millimetre guns are installed in open emplacements. These are First World War–era French Canon de 155 GPF mle 1917, re-designated by the Germans as 15.5-centimetre K 418(f). The guns are mounted on circular, panama-style concrete platforms. These platforms provide a wide traverse and improve firing accuracy. Each gun has a maximum range of nearly twenty kilometres, transforming the battery into a significant anti-ship threat.

The six open gun pits are spread across the plateau. A fire-control post near the cliff edge is used to direct the guns. This observation post offers clear sightlines over the Channel and is connected to the gun crews via field telephone.

In early 1944, the Germans anticipate an Allied invasion. They begin major upgrades at the site to protect the guns from naval bombardment. Construction begins on six Regelbau casemates, designed to shelter the 155-millimetre guns. Two designs are used: Regelbau 694 and the heavier Regelbau 679 type. These concrete bunkers feature steel reinforcement and overhead cover to withstand direct hits.

By June 1944, construction is only partially complete. Several casemates are finished or nearing completion. Others remain under construction when the battery comes under attack. As a result, not all guns receive full protection by D-Day.

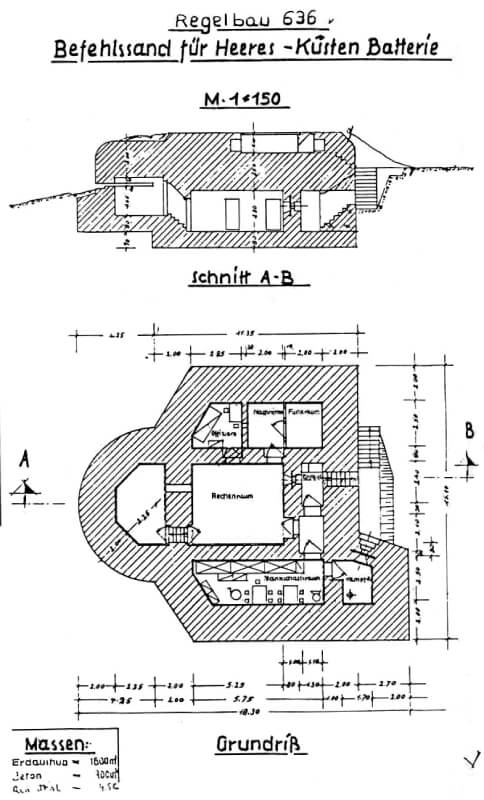

A new fire-control bunker is also built. This is a Regelbau 636 observation post located near the cliff. The structure is elevated and fitted with range-finding equipment and vision slits facing the sea. It allows accurate coordination of fire across the landing beaches.

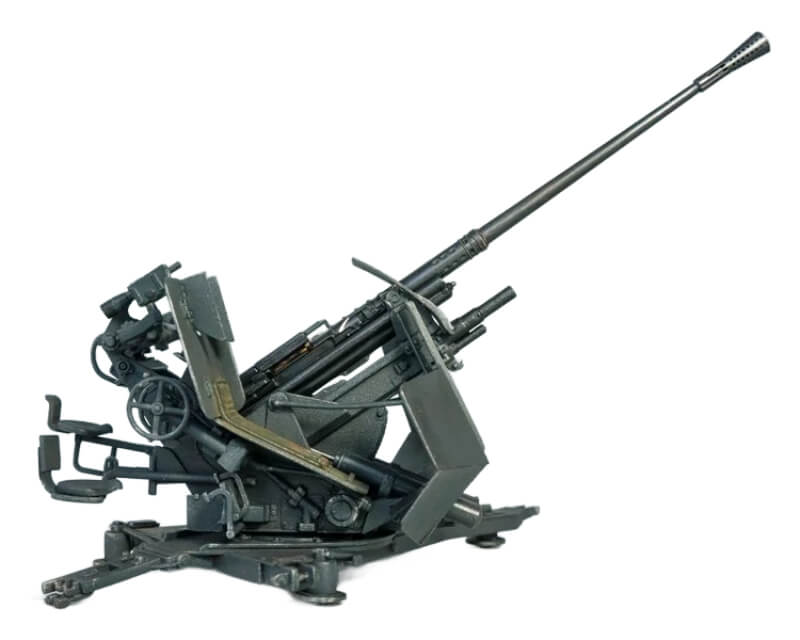

To defend against air attack, two L409A Flak casemates are constructed. These two-storey bunkers stand on the eastern and western flanks. Each one houses a 3.7-centimetre Flak 36 cannon on the upper platform. A below-deck compartment stores ammunition. Some 20-millimetre Flak 30 guns are also held in reserve.

All positions are connected by trenches and partial tunnels. These allow protected movement between the various bunkers and crew positions. The entire site forms an integrated and fortified complex.

By the summer of 1944, Pointe du Hoc comprises a circular defensive system approximately 200 to 250 metres across. The six gun pits and emerging casemates dominate the central plateau. Communication trenches and dugouts link the battery’s key components. The observation bunker stands at the front of the site, facing the Channel.

Support bunkers for ammunition, crew quarters, and medical treatment are placed to the rear and sides. The perimeter is reinforced with barbed wire and minefields. These are designed to delay or halt any infantry advance. Machine gun nests and rifle pits are concentrated along the landward approaches. The seaward cliffs are considered impassable and thus lightly manned.

Pointe du Hoc is constructed as a self-contained fortress. Its firepower threatens both sea lanes and invasion beaches. Its defences are layered against aerial, naval, and infantry attack. The site is a cornerstone of the Atlantic Wall and a priority target for Allied planners.

Multimedia

Artillery Armament and Casemates

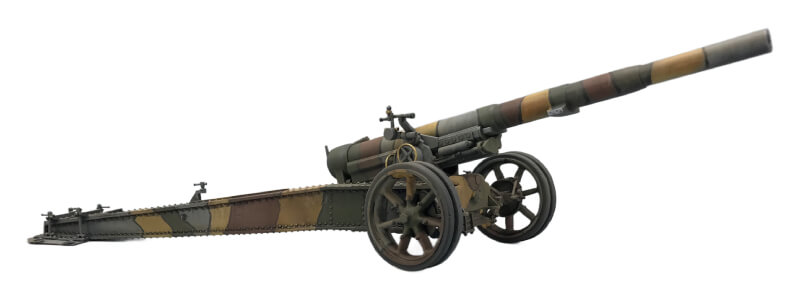

At the core of the Pointe du Hoc battery are six 155-millimetre GPF guns. These weapons, known to the Germans as the 15.5 cm K 418(f), are of French First World War origin. Each gun is capable of firing a 43-kilogram shell to a range of nearly twenty kilometres. Their reach allows them to strike both Omaha and Utah Beaches, as well as shipping offshore.

The guns are initially placed in open concrete emplacements with full traverse. Mounted on circular traversing platforms, they are adapted for coastal defence. These concrete mounts provide stability, improving both accuracy and durability under repeated firing.

Each position is a circular pit, reinforced with concrete and surrounded by earth berms. Ammunition storage is located in niches nearby. The guns are deployed to allow overlapping fields of fire. Some face westward towards Utah Beach, while others cover the approaches to Omaha. This arrangement permits enfilading fire along the coastline, making the position especially dangerous to landing forces.

A preserved example of the K 418(f) remains on display at a former Atlantic Wall site. The weapon’s shell weighs roughly ninety-five pounds and can reach targets almost twenty kilometres away. When in position at Pointe du Hoc, these guns pose a serious threat to Allied naval units and beach landings.

Multimedia

Casemate Bunkers

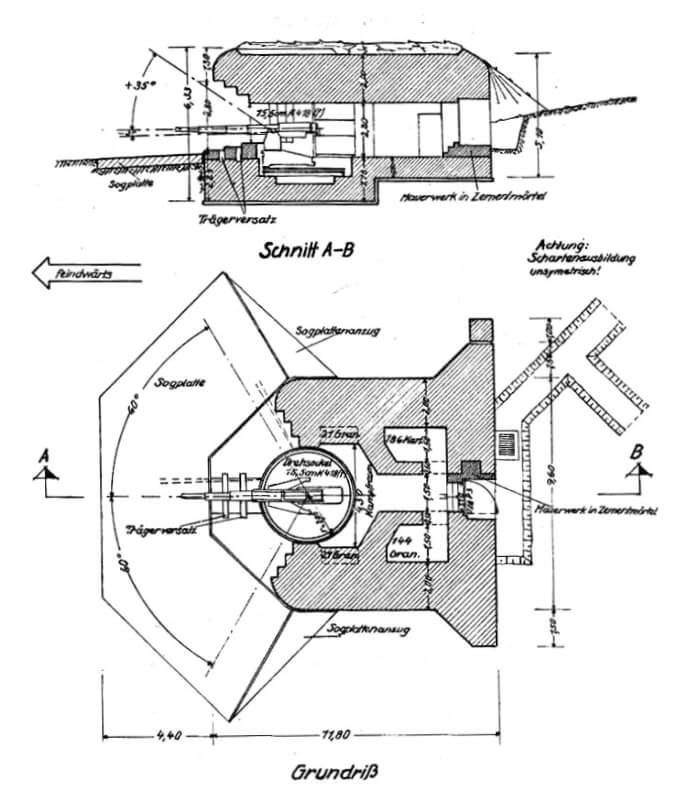

To shield the battery’s main guns, the Germans begin constructing heavy artillery bunkers. These are the Regelbau 694 casemates, also referred to in some records as H671 or H679 types. Each structure is designed to house one 155-millimetre gun on a central pivot. The casemates feature thick, steel-reinforced concrete walls and roof, measuring over two metres in thickness.

A frontal embrasure allows the gun to fire out while remaining protected from incoming fire. These casemates are intended to resist direct hits from naval shells and aerial bombardment. The design enables continued firing even during sustained attack.

By June 1944, several casemates are completed or nearly so. However, at least two remain under construction when the Allied invasion begins. Rebar protrudes from unfinished sections, and some concrete work is incomplete. Organisation Todt labourers are still working on these structures in the final days before D-Day.

As a result, not all guns are housed within bunkers. Some remain exposed in their original open emplacements or in temporary shelters. This incomplete construction leaves the battery vulnerable at a critical moment.

Multimedia

Fire Control and Range-Finding

Targeting for the battery is directed from a prominent Regelbau 636 fire control bunker. Located near the cliff edge, the structure includes armoured viewing slits and elevated observation posts. The bunker contains range-finding instruments such as stereoscopic optics and periscopes.

Observers from this position can view naval targets far out to sea. Using radio or field telephone, they relay adjustments to each gun crew in real time. This system allows coordinated fire, enabling salvos to be concentrated on distant or unseen targets.

The observation post plays a vital role in making the battery effective. Even if some guns are disabled, the fire control bunker can continue to direct artillery fire from other German batteries along the coast. For this reason, Allied commanders regard the observation position as a key target during the D-Day assault.

Multimedia

Fortifications and Defensive Systems

By 1944, Pointe du Hoc evolves into a heavily fortified German strongpoint. It is no longer just a gun battery but a hardened defensive complex. Multiple layers of protection are installed to repel both air and ground assault. The site becomes a key Stützpunkt, integrated into the wider Atlantic Wall. The complex contains:

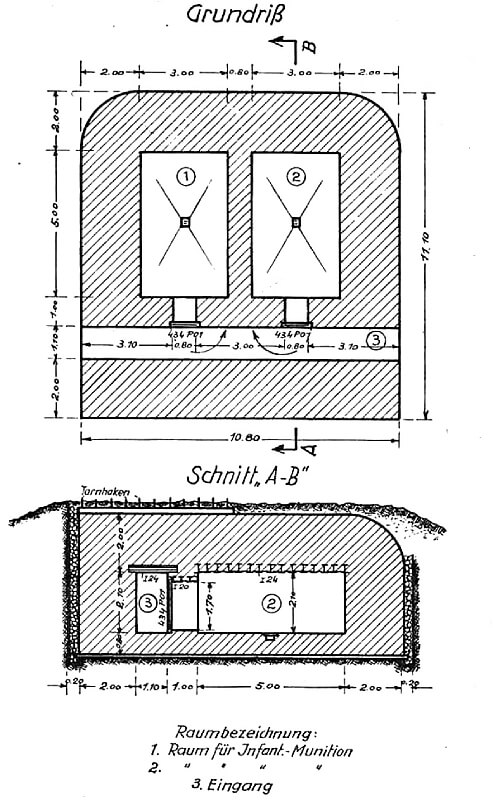

• Several small concrete ammunition bunkers are built near the gun positions. These follow the Regelbau 134 design. Each stores shells and propellant charges in blast-resistant chambers. Their construction reduces the risk of catastrophic explosions under bombardment and ensures immediate access to munitions during action.

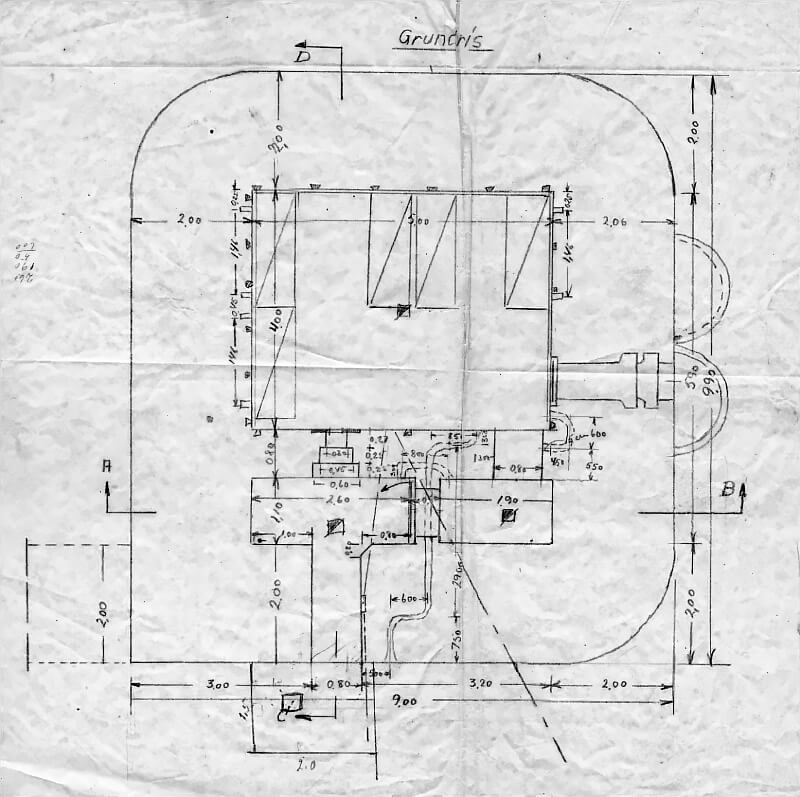

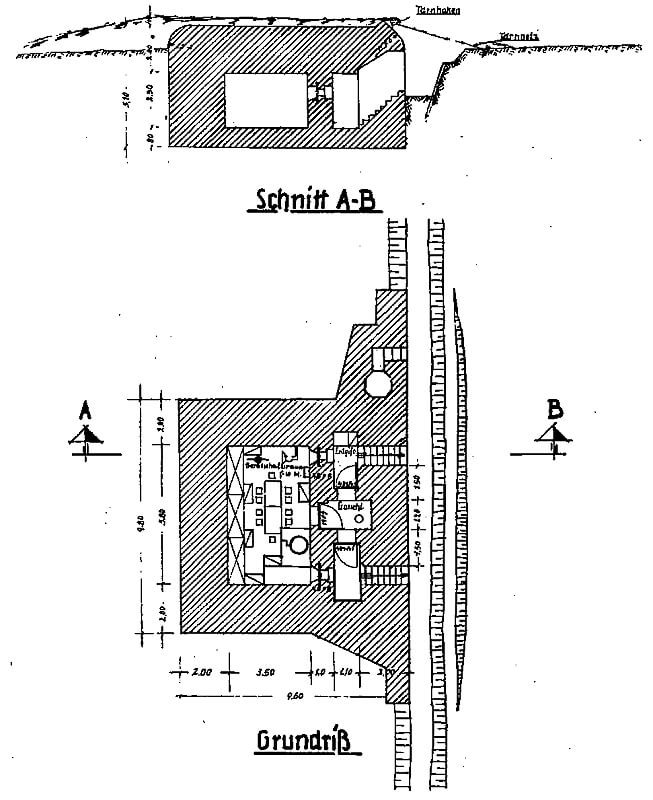

• To protect the garrison, multiple hardened crew bunkers are constructed. The battery includes Regelbau 501 and 621 shelters, each designed for about ten men. Larger R502 bunkers accommodate up to twenty. These structures have thick walls and internal blast doors. They provide protection during air raids and serve as living quarters for the battery’s personnel.

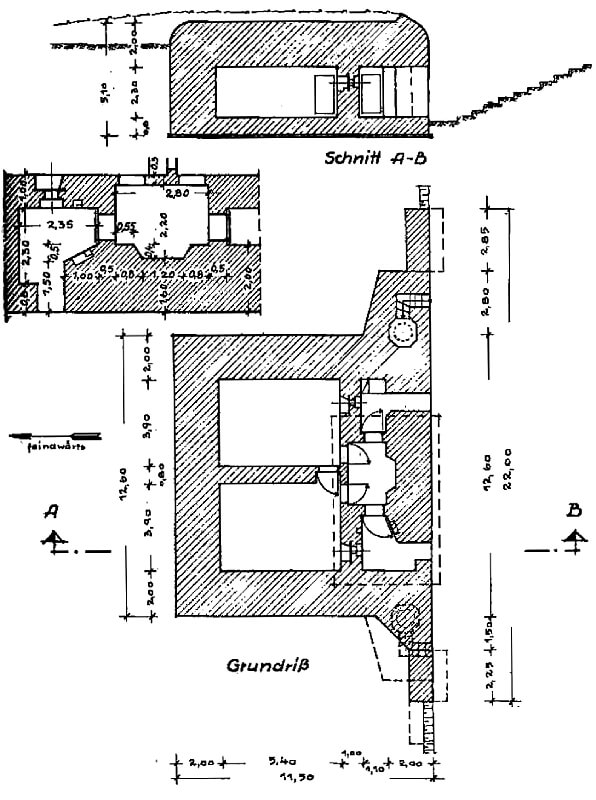

• A Regelbau 661 bunker serves as a first-aid post. It is dug into the ground for added protection. The bunker includes an operating alcove and medical stores. It is built in anticipation of heavy fighting, allowing the garrison to treat casualties on-site if isolated from outside support.
• The battery’s command centre is housed in a two-storey Regelbau 636 bunker. This structure stands close to the cliff edge. The upper level contains observation slits and a steel periscope for panoramic scanning. The lower level hosts communication equipment and command staff. This bunker coordinates fire missions and links the battery to other positions via telephone or radio.

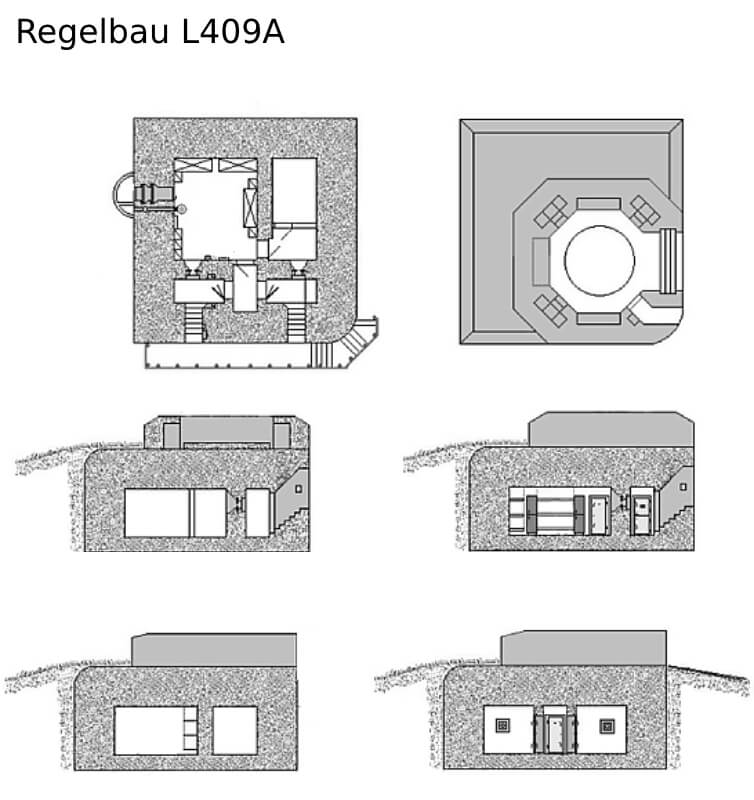

• Pointe du Hoc includes two large Flak casemates of type Regelbau L409A. One stands on the eastern flank, the other on the west. Each is a two-storey structure. The lower floor contains ammunition stores. The upper platform mounts a 3.7-centimetre Flak 36 cannon. These guns are used to target enemy aircraft and can engage landing craft or infantry during an assault.

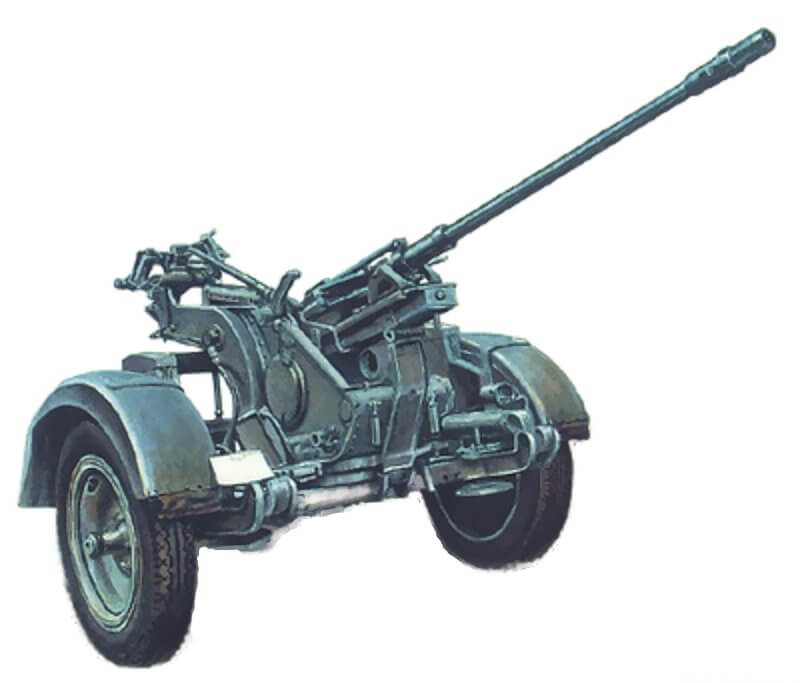

• Lighter 20-millimetre Flak 30 cannons are also installed. These are placed on pedestal mounts around the site. Some are added in early 1944. During the D-Day landings, at least one 20-millimetre gun fires on Allied landing craft and amphibious DUKW vehicles. Together, these weapons provide a layered anti-aircraft screen and serve as close-in defence against infantry.

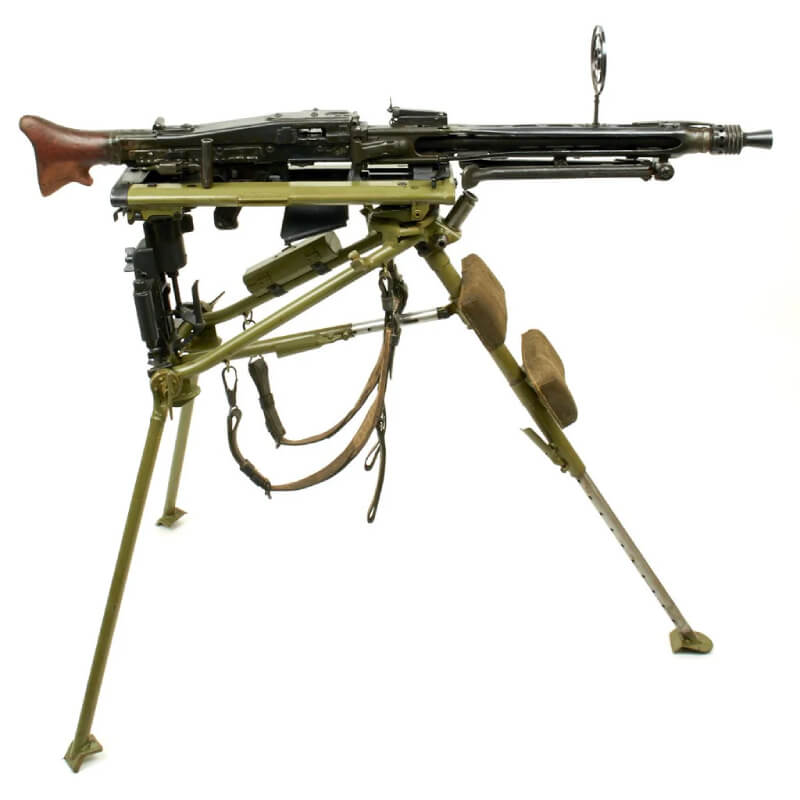

The battery is ringed with machine gun nests, rifle pits, and trenchworks. MG34 and MG42 machine guns are emplaced to cover the cliff base and inland approaches. Tobruk pits, small concrete bunkers with overhead protection, are likely used for machine guns or mortars. Barbed wire and minefields surround the battery, especially on the landward side. The cliff edge, though naturally formidable, is also topped with wire and observation posts. The Germans believe the cliffs to be impassable. This assumption proves dangerously false.

All components of the site are mutually supporting. Any enemy force reaching the plateau is met with overlapping machine gun fire and flak cannons repurposed for ground targets. The reinforced concrete bunkers withstand repeated air raids and naval bombardments. Aerial reconnaissance in spring 1944 shows extensive cratering from bombing, but many bunkers remain intact.

These hardened structures allow the defenders to survive bombardment, then return to their positions once the barrage lifts. The battery is designed to resist attack from land, sea, and air. Its construction reflects the core philosophy of the Atlantic Wall: to create static, layered defences capable of withstanding a modern amphibious assault. Pointe du Hoc becomes one of its most formidable examples.

Multimedia

Multimedia

Garrison Personnel and Organisation

Pointe du Hoc is manned by a combination of coastal artillery personnel and regular infantry. This reflects the site’s dual function as both an artillery battery and a fortified strongpoint. The core garrison belongs to the 2. Batterie of Heeres-Küsten-Artillerie-Abteilung 1260 (2./HKAA 1260), the Army’s coastal artillery battalion assigned to the Normandy sector.

This battery includes around 80 to 90 men. These comprise gun crews for the six 155-millimetre pieces, fire control operators, communications personnel, Non-Commisoned Officers, and support staff. Each gun is typically operated by a crew of eight to ten men. Roles include gunner, loader, aimer, and others responsible for ammunition handling and maintenance. Oberleutnant Frido Ebeling commands the battery.

In total, the artillery complement at Pointe du Hoc numbers approximately 85 men. These troops handle the operation of the guns, the observation systems, and battery maintenance.

To defend the battery against assault, additional infantry troops are assigned to the position. Elements of the 352. Infantrie-Division are positioned at or near Pointe du Hoc in the weeks leading up to the invasion. This division arrives in Normandy in the spring of 1944, reinforcing the coastal sector and replacing parts of the 716. Infantrie-Division.

The infantry assigned to Pointe du Hoc are tasked with manning machine gun positions and forming a local reserve for counterattacks. Reports indicate that around 125 infantrymen are deployed in support of the battery. These troops may have been drawn from the Grenadier Regiments 914 or 916 of the 352. Infantrie-Division. Some elements of the older 716. Infantrie-Division, including the Grenadier-Regiment 726, also remain in the area during the changeover.

On D-Day and the following day, units from both divisions engage in the fighting at Pointe du Hoc. Notably, the Grenadier-Regiment 916 takes part in German counterattacks against the position on June 7^th, 1944.

The battery forms part of a wider organisational structure under the German 7^th Army’s coastal defence command. Heeres-Küsten-Artillerie-Abteilung 1260 operates several batteries in the region. The 1. Batterie is stationed at Riva-Bella, 3. Batterie at Mont-Fleury, and 4. Batterie at Longues-sur-Mer. These artillery positions are distributed along the Bay of the Seine and form an integrated coastal defence network.

Pointe du Hoc communicates with nearby batteries and higher command via field telephone lines. This allows coordination of fire missions and the sharing of target data.

Up until the invasion, Organisation Todt workers remain at the site. These labourers, often conscripted from occupied territories, are finalising the construction of bunkers and casemates. Although non-combatants, some become casualties when the site is attacked.

Prior to the invasion, the garrison follows a structured routine. Gun crews carry out drills and conduct maintenance. Observers in the fire-control bunker maintain a constant watch over the sea. Infantry troops conduct patrols and man defensive positions. Shifts are rotated to maintain readiness.

The battery conducts occasional test-firing and gun calibration, though this risks revealing its position to Allied reconnaissance. Camouflage work becomes a regular task in 1944 as Allied aerial surveillance intensifies. Bomb damage from repeated air raids is frequently repaired.

When Allied bombers approach, the garrison moves into underground shelters and air-raid stations. Trenches and hardened bunkers provide protection. These precautions become increasingly important during the spring of 1944, as the Allies step up bombing in preparation for invasion.

Operational Deployment

By 1943, with all six 155-millimetre guns emplaced, Pointe du Hoc becomes operational as a coastal artillery battery. Throughout late 1943 and into early 1944, the battery remains quiet. It does not engage in offensive action but stands ready to fire on Allied naval vessels in the event of an approach toward the Baie de la Seine. Though no major encounters occur during this period, the battery maintains readiness.

The site undergoes continuous reinforcement during these months. Organisation Todt labourers and German engineers pour large volumes of concrete, working to complete casemates and defensive bunkers. This construction is monitored by Allied reconnaissance aircraft, which fly frequent missions over the promontory from February to May 1944. The Allies note steady progress in fortifying the site.

Reports from the French Resistance confirm that the Germans are upgrading the battery. Some accounts even suggest that several guns may have been temporarily removed to allow construction to continue. This raises questions among Allied analysts, but no clear conclusion is reached.

In April 1944, the Allies carry out a targeted bombing raid against Pointe du Hoc. The strike damages several surface positions. In the aftermath, German commanders take action to preserve the battery’s key weapons. The six 155-millimetre guns are withdrawn from their open emplacements and moved inland for protection. They are hidden in an orchard approximately 1.5 to 2 kilometres south of the cliff.

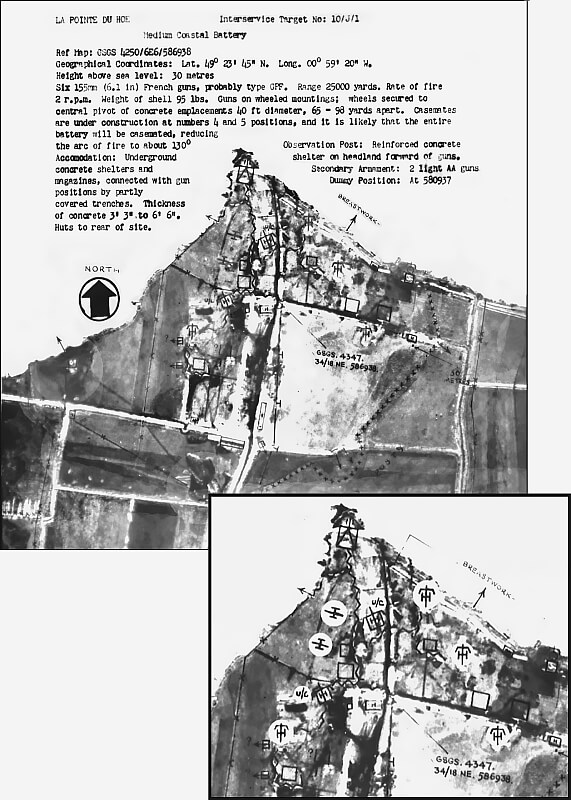

To deceive Allied observers, the Germans place dummy gun barrels, wooden poles or telegraph posts, into the empty casemates and pits. Allied photo analysis detects irregularities, but the absence of conclusive evidence means the position remains a high-priority target. As a result, Allied planners continue to regard Pointe du Hoc as a serious threat.

In the final hours before D-Day, Allied forces launch a massive aerial bombardment. From 5 June into the early morning of June 6^th, 1944, over 500 tonnes of bombs are dropped on the battery area. Medium bombers of the US 9^th Air Force, including 18 A-20 Havocs, strike the position just before dawn.

The impact leaves the promontory cratered and shattered. Even today, visitors describe the terrain as lunar due to the extent of the bombing. Despite the scale of the attack, many German bunkers remain structurally intact. Their thick reinforced concrete walls withstand the blasts, though many are buried under rubble.

At around 05:50 on June 6^th, 1944, Allied warships begin shelling the cliffs and bunkers. The USS Texas and several cruisers and destroyers bombard the site to suppress any remaining defenders. The naval gunfire continues until just before the ground assault begins.

At H-Hour, the U.S. 2^nd Ranger Battalion lands at the base of the cliffs. Their mission is to scale the heights and destroy the battery before it can fire on the beaches. After a harrowing ascent under fire, the Rangers reach the summit. They find shattered gun pits and half-built casemates, but no operational artillery.

Despite confusion and heavy casualties, the Rangers begin searching inland. Within the first hour, patrols locate the missing guns concealed in an orchard about one mile south. Using thermite grenades, they disable the weapons beyond repair. This swift action renders the battery permanently inoperable.

German troops at the site resist with machine guns, grenades, and at least one 20-millimetre cannon. They launch several counterattacks over the following 48 hours, reinforced by nearby infantry units. However, the Rangers, though cut off and under constant fire, hold their ground. By June 8^th, 1944, Pointe du Hoc is firmly in American hands. Most of the German defenders are either dead or captured.

In the days following D-Day, it becomes clear that Pointe du Hoc never fires a shot during the landings. With the guns removed and later destroyed, the feared flanking bombardment does not materialise. Instead, the battery at Maisy, located several kilometres west, shells the beachheads until it is overrun on June 9^th, 1944.
