Omaha Beach, Widerstandsnest 71

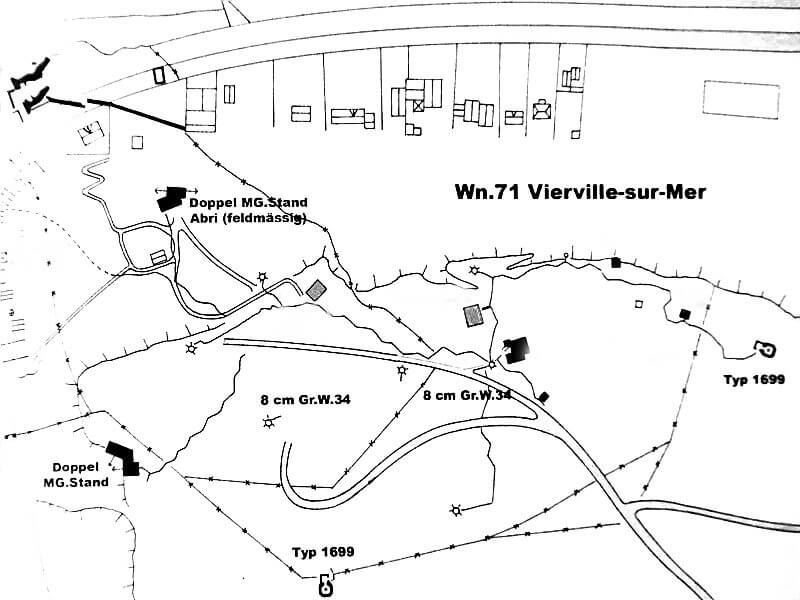

Construction and Layout of Widerstandsnest 71

Widerstandsnest 71 is built during 1943–44 on the high ground east of the Vierville draw. Organisation Todt and German engineers construct it using steel-reinforced concrete for its bunkers and shelters, supported by earthen trenches and dugouts. The site’s layout centres on a network of zig-zag trenches linking all defensive positions. These trenches are cut into the hillside, in places revetted with timber or sandbags, and run around the bluff to connect each key emplacement. This design allows the garrison to move under cover and resist attack from multiple directions.

On the seaward front of Widerstandsnest 71 stood a bunker with an unusual double-embrasure design, which also functioned as an MG 34 firing position.

This was not a standard Regelbau (RB) model but a Sonderkonstruktion (SK), a special construction adapted to local tactical requirements. The structure comprised a small entrance room leading into a shelter, from which a corridor gave access to the main fighting compartment. This compartment featured two embrasures set into the side walls, enabling fire both to the east and to the west along the length of the beach. From here, the garrison could engage targets in either direction, providing effective enfilade coverage of neighbouring sectors.

The bunker also serves as the command post for the 3. Batterie, II. / Artillerie-Regiment 352, allowing artillery fire from rearward positions to be directed onto the beach approaches. Its siting combines direct defensive capability with an observation and coordination role.

Unlike its neighbour Widerstandsnest 72, Widerstandsnest 71 has no large artillery casemates. It is instead equipped with lighter fortifications optimised for infantry defence. Two Tobruk-type bunkers are positioned on the eastern and western flanks. The eastern Tobruk is a standard Type 1699, designed for a machine gun. The western Tobruk is similarly configured. Both retain their internal metal mounting rings for securing an Machine Gun or a light mortar.

At the centre of the position stands a small concrete personnel shelter. This structure, earth-covered and camouflaged, serves both as troop protection and as the Kommandostand for the strongpoint. It is a field-type shelter, built of reinforced concrete but simpler in design than a standardised Regelbau bunker. It is positioned to serve both the garrison and the adjacent gun positions. Inside, there is a small ammunition niche for ready-use storage, ensuring that small-arms ammunition and possibly limited quantities of gun rounds can be accessed quickly during combat.

The main room contains a water reservoir with a capacity of approximately 1,700 litres, providing a sustained supply for the garrison during a prolonged engagement. This water storage is essential, as Widerstandsnest 71 is expected to operate in isolation for many hours under siege conditions. The shelter likely houses a gas-tight and pressure-resistant Wt 80 kJ stove, allowing safe heating and limited cooking even in the event of gas attack or heavy bombardment.

Two small windows in the shelter’s walls may serve a dual purpose: providing light and ventilation in normal use and acting as emergency exits should the main doorway be blocked by debris or enemy action. The design reflects German field engineering priorities in Normandy, compact, functional, and built to keep the crew combat-capable under sustained fire. While not a large underground barracks, this shelter forms the heart of Widerstandsnest 71’s personnel protection, supporting both the defensive endurance and logistical needs of the garrison.

In addition to the field shelter, the position contains two other light shelters. One is constructed from timber. The other is still partly under construction in early June 1944. Both provide only limited protection and serve as secondary accommodation or storage.

Three small ammunition bunkers stand in the western part of the complex. These hold reserve stocks of small arms ammunition and explosives for the strongpoint’s weapons. They are built into the ground for concealment and blast protection.

The most distinctive features of Widerstandsnest 71 are two double-embrasure machine-gun posts built directly into the cliff face on its forward edge. These concrete structures have paired embrasures set side by side, projecting from the bluff just above the coastal road. Each firing port is positioned to cover the Vierville draw and the slopes of the valley. The double Machine Gun posts sit behind the row of seaside houses along the Vierville road, making them difficult to detect from the beach. Their orientation allows overlapping fields of fire along the draw road and into the western side of the ravine, though they cannot directly sweep the open sands below due to their cliffside position.

All elements, Tobruks, Machine Gun posts, and the central shelter, are linked by the trench system into a compact, defensible complex. The design uses the natural bluff to provide cover and concealment, while positioning weapons to dominate the likely avenues of approach: the draw road, the valley slopes, and adjacent beach sectors. Thick concrete and earth protection give the position resilience against bombardment, ensuring that its weapons can continue to fire in support of the wider coastal defence network.

An underground passage runs from the road up to the plateau. This links Widerstandsnest 71 and Widerstandsnest 72 beneath the surface. The tunnel allows protected movement between the two positions under fire. It also enables the transfer of messages, supplies, and reinforcements without exposure to direct observation or enemy fire.

Defensive Systems and Infrastructure of Widerstandsnest 71

Widerstandsnest 71 is integrated into Omaha Beach’s layered obstacle system, making full use of both engineered and natural barriers. Immediately in front of the bluffs runs a 6.4-metre seawall topped with coils of barbed wire. This wall forms a first inland barrier and slows down any attackers who reach the shingle.

Below the seawall, the wide tidal flat is littered with obstacles. These include Czech hedgehogs, wooden stakes, and tilted Belgian gates fitted with mines. Though part of the overall Omaha defences rather than unique to Widerstandsnest 71, these obstacles funnel assault troops into predictable lanes already covered by the strongpoint’s weapons.

Minefields are a key element of Widerstandsnest 71’s protection. Anti-personnel and anti-tank mines are densely laid around the Vierville draw and on the slopes leading up to the position. Mines cover the beach approaches, the flanks of the D-1 exit road, and the plateau behind and around the strongpoint. They exploit natural choke points, inflicting casualties and breaking up formations before they reach the trenches.

Barbed wire entanglements add further delay. Belts of wire are placed around the perimeter, across likely approach routes, and around trench lines and bunker entrances. These obstacles force attacking infantry to pause or bunch together under defensive fire.

Anti-tank defences block the Vierville ravine itself. Two reinforced concrete walls, each about 38 metres long, 2.7 metres high, and 1.8 metres thick, stand across the D-1 exit road at different points. These act as solid barricades, slowing or halting any vehicle movement inland. From its elevated position, Widerstandsnest 71’s machine guns and any anti-tank weapons can target vehicles trapped at these walls.

Behind the physical barriers lies an internal support network. The zig-zag trenches not only connect firing positions but also serve as protected communications routes. Field telephone cables are likely buried in or alongside these trenches, linking Widerstandsnest 71 to neighbouring Widerstandsnester and the local sector command. This allows rapid transmission of reports and fire requests.

The terrain itself strengthens Widerstandsnest 71’s defence. The steep bluff and hillside provide a commanding view over the draw and its approaches. Attackers must either climb the exposed slope or push through the narrow defile, all under observation and fire from above. The cliff face also shields the position from direct naval bombardment, as many weapons are sited to fire laterally across the beach rather than directly out to sea.

In combination, these measures, minefields, wire, anti-tank walls, concealed communications, and the natural advantages of the bluffs, turn Widerstandsnest 71 into a hardened resistance node within the Atlantikwall. Each layer of defence is designed to delay, disrupt, and weaken an assault before it can reach the heart of the strongpoint.

Multimedia

Armament and Weapons Emplacements of Widerstandsnest 71

Widerstandsnest 71’s armament is oriented towards halting infantry and light vehicles, complementing the heavier coastal guns sited in neighbouring Widerstandsnester. Preserved German reports record the position as being equipped with “several 5-centimetre mortars, machine-guns and a small cannon.” These weapons, though modest compared to the major artillery elsewhere along the Atlantikwall, are deadly when employed from prepared positions with overlapping arcs of fire.

The mortar complement most likely includes two 5-centimetre leichter Granatwerfer 36 light mortars. These crew-served infantry weapons have an effective range of a few hundred metres and are well suited to lobbing shells into dead ground such as the shingle bank or the base of the bluff. At least one of Widerstandsnest 71’s ringstand Tobruk positions is fitted with a spigot mount designed to accommodate such a mortar, allowing it to be fired from within a protected emplacement. In practice, mortar crews are believed to have been dug into field positions just behind the bluff, from where they could drop high-explosive rounds onto the beach approaches and into the Vierville draw without direct exposure to return fire.

There are also indications that two 8.1-centimetre Granatwerfer 34 medium mortars, the standard German “heavy grenade launcher”, may have been assigned to Widerstandsnest 71 or to nearby supporting positions. If present, these 8.1-centimetre mortars would have been placed in pit emplacements on the reverse slope of the hill or in other covered locations, firing over the crest onto surf zones, beach obstacles, or inland targets. The heavier rounds and longer range of the Gr.W. 34 would allow Widerstandsnest 71’s defenders to reach deeper into the landing area and sustain bombardment over a wider area.

Machine guns form the backbone of Widerstandsnest 71’s defensive capability. The garrison is armed with at least nine MG 34 and MG 42 general-purpose machine guns, deployed across the various bunkers and fighting positions. The most prominent are the two concrete double-embrasure positions built into the cliff face. Each embrasure can mount an MG 42 with a cyclic rate of fire of 1,200 rounds per minute or an MG 34 firing 800–900. Their siting allows them to sweep the Vierville draw road and the slopes of the valley with sustained, lateral fire, rather than facing directly out to sea. In addition to the two MG-armed Tobruks and the two twin-machine-gun emplacements, Widerstandsnest 71 contains five further machine-gun positions in open field mounts.

These are sited along the cliff edge to command the approaches across the beach below. Several of these positions are likely fitted with Wellblech roofing, curved corrugated steel sheets providing overhead protection from shrapnel and weather while remaining open at the front for an unobstructed field of fire. Their placement ensures continuous coverage of the beach sector, enabling the garrison to deliver sustained flanking and frontal fire on any assaulting troops attempting to advance from the shoreline toward the Vierville draw.

Additional machine guns can be deployed in the Tobruk pits on the eastern and western flanks of the strongpoint. Each Tobruk, a small, circular, bunker, offers 360 degrees of traverse, enabling the gunner to cover open ground inland, pivot toward the draw, or rake the beach. The eastern Tobruk could target the approaches from Dog White sector or pivot westward into the draw, while the western Tobruk could engage threats from the draw or western approaches. One or more of these Tobruks could, if required, be armed with a light mortar or grenade launcher instead of a machine gun, depending on tactical needs.

The “small cannon” mentioned in some reports is most likely a 5-centimetre PanzerabwehrKanone 38. This light anti-tank gun would be positioned to cover the D-1 draw road directly, firing on any vehicle attempting to break through inland. It could also serve in an anti-boat role against landing craft approaching the beach. Alternatively, the weapon might have been a captured French or Czech gun of similar calibre, as these were widely issued in coastal positions. A prepared firing pit or an earth-bermed emplacement would provide some concealment and recoil absorption. Although nearby strongpoints are known to have mounted obsolete tank turrets, such as Renault R-35 turrets armed with 3.7-centimetre guns, there is no direct evidence that Widerstandsnest 71 had such an installation.

The siting of all these weapons is deliberate. Interlocking fields of fire ensure that no approach is left uncovered. The cliffside double-embrasure Machine Gun posts face westward across the D-1 draw, overlapping their arcs with those of Widerstandsnest 72 on the opposite bank so that any attacker advancing up the road would be caught in a lethal crossfire. Mortars positioned behind Widerstandsnest 71 can drop shells into Widerstandsnest 72’s forward sector, just as Widerstandsnest 72’s indirect fire can reach the approaches to Widerstandsnest 71.

Rather than orienting their fire directly seaward, which would expose embrasures to the full weight of naval bombardment, most of Widerstandsnest 71’s weapons are angled laterally along the beach or into the draw. This allows them to rake the length of the sands and hit assaulting troops from the side. From its western-facing positions, Widerstandsnest 71 can enfilade the Dog Green sector, while Widerstandsnest 72’s heavier gun and Machine Guns fire eastward into Dog White sector. Together, these positions create a continuous, overlapping web of fire across the western end of Omaha Beach.

Garrison and Organisation of Widerstandsnest 71

The garrison of Widerstandsnest 71 comes from the 716. Infanterie-Division (bodenständig), the static infantry division responsible for coastal defence in this sector before D-Day. Specifically, it is manned by elements of the 11. Kompanie, Grenadier-Regiment 726, tasked with defending the Vierville-sur-Mer area, including Widerstandsnest 71. This is a static infantry company composed largely of second-line troops, older German soldiers, conscripts, and possibly a small number of Osttruppen, trained for fixed-position defence rather than mobile operations.

The garrison strength is roughly platoon-sized, estimated at about two Gruppen of infantry plus support personnel, totalling around 20–25 men. Organisation within the strongpoint follows the standard Wehrmacht pattern for a prepared defensive position. Command on-site is likely held by a Leutnant or a senior Feldwebel, who reports either to the 11. Kompanie’s Gefechtsstand inland or to the commander at Widerstandsnest 72, the larger strongpoint covering the opposite side of the D-1 draw. Each major fighting position, such as a machine-gun bunker, Tobruk, or mortar pit, has its own Unteroffizier leading a small team.

Machine-gun positions, including the cliff-side double-embrasure posts and the Tobruks, are crewed by an Maschinengewehr-Schütze, an assistant gunner responsible for feeding ammunition belts, and often a third man acting as a Munitionsträger or spotter. Light mortar teams for the 5-centimetre leGrW 36 generally consist of three men, a gunner, an assistant, and an ammunition bearer. If an 8-centimetre Gr.W. 34 is present, it would require a crew of five to six men. A dedicated Panzerabwehrkanone crew, probably five men, would serve the 5-centimetre PaK 38 or equivalent “small cannon” if it is emplaced. The remainder of the garrison serve as riflemen for local security, sentries, and reserve fighters. One soldier is usually assigned to maintain communications, either operating the Feldfernsprecher (field telephone) connected to the Kompanie-Gefechtsstand or running messages by hand. A Medic from the parent company may be able to reach the position if needed, but is unlikely to be permanently stationed at Widerstandsnest 71.

Each man has a clearly defined defensive assignment, whether covering a specific sector from a trench firing step, manning a fixed weapon, or serving as a Pionierflammenwerfer operator in the event of a close assault. This reflects a pre-arranged fire plan designed to ensure all approaches are covered.

On the eve of the invasion, the position is not at full strength. German reports from the morning of June 6^th, 1944, describe the units in Widerstandsnest 71 (and Widerstandsnest 73) as “sehr schwach”, very weak, prompting reinforcement by Pioniere. These engineers, likely from a Festungs-Pionier-Bataillon, are brought in to improve and finalise defences, lay additional mines and wire, and, if required, fight as infantry.

In the days before D-Day, the defensive front in this area is in transition. Elements of the veteran 352. Infanterie-Division are moved into the Omaha Beach sector to bolster the 716. Infanterie-Division. By early June, command is shared with units from Grenadier-Regiment 914 (352. Infanterie-Division) present in Vierville-sur-Mer on D-Day. Nevertheless, Widerstandsnest 71’s immediate garrison remains primarily static troops of Grenadier-Regiment 726 up to the moment of the attack.

Widerstandsnest 71’s Role in the Omaha Beach Defence Strategy

Widerstandsnest 71 holds a key place in the German defence plan for Omaha Beach, tasked above all with guarding the Vierville draw (Exit D-1). This draw is the westernmost exit from Omaha and the only paved road off the beach in that area. German planners recognise that if the Allies secure it quickly, they can move armour and vehicles inland, potentially outflanking the rest of the coastal defences. For this reason, the D-1 sector is the most heavily fortified stretch of Omaha Beach, defended by mutually supporting strongpoints and extensive obstacles.

Widerstandsnest 71 is one of three interlinked Widerstandsnester dominating the draw. It occupies the eastern bluff, Widerstandsnest 72 holds the western side, and Widerstandsnest 73 sits further west on the next headland. Together, they cover the draw and surrounding beaches from multiple angles. Widerstandsnest 71’s specific mission is to defend the draw from the east and to provide flanking fire across the approaches to Vierville. From its elevated position it commands Dog Green sector directly below and can fire into Charlie sector to the west, in front of Pointe de la Percée.

In action, Widerstandsnest 71’s guns are intended to engage any enemy reaching the shingle or seawall from the flank or rear, while Widerstandsnest 72 does the same from the opposite side, creating a lethal crossfire. The strongpoint’s trenches and Tobruks also face inland to block any attempt to climb the bluffs and attack Widerstandsnest 72 from behind. In this way, Widerstandsnest 71 functions as a supporting position to its larger neighbour. If Widerstandsnest 72’s heavy weapons are neutralised, Widerstandsnest 71 remains to engage the attackers from the opposite slope.

Coordination with adjacent defences is deliberate. Widerstandsnest 71 is part of Gruppe Vierville (Stützpunktgruppe Vierville), linked to Widerstandsnest 72, Widerstandsnest 73, and the sector command post in Vierville village. The positions likely share the same company command, exchanging reports and fire requests by field telephone or runner. Overlapping arcs ensure each strongpoint can cover areas its neighbour cannot. Widerstandsnest 73’s 7,5-centimetre field gun can hit the western end of Omaha, while Widerstandsnest 71’s and Widerstandsnest 72’s weapons rake Dog Green and Charlie sectors from opposite sides. Even the fortified farmhouse in front of Widerstandsnest 73 and the beach obstacles are within Widerstandsnest 71’s fields of fire.

Any assault trying to outflank Widerstandsnest 72 by moving behind the houses along the coastal road runs into Widerstandsnest 71’s hilltop positions. Any attempt to storm the draw directly meets crossfire from both Widerstandsnest 71 and Widerstandsnest 72, reinforced by grenade and mortar fire from above.

In strategic terms, Widerstandsnest 71 is part of a defence-in-depth. The first line is the beach obstacles and rifle positions at the water’s edge. The second line is formed by strongpoints like Widerstandsnest 71 on the high ground, positioned to maximise lateral fields of fire and to withstand naval bombardment. Even if the beach is penetrated and some bunkers fall silent, Widerstandsnest 71 and its neighbours are to hold the ridge and keep delaying the advance. Behind them are inland reserves, such as Widerstandsnest 70 on the plateau between Vierville and Saint-Laurent, and artillery batteries ready to engage the beachhead.

Widerstandsnest 71 therefore acts as the bridge between the frontline beach defences and the inland reserve line. It has sufficient firepower to inflict heavy losses on a landing force and, if left in action, forces the enemy to divert time and resources to eliminate it before vehicles can move up the D-1 road.

In the broader context of the Atlantikwall, Widerstandsnest 71 is a textbook example of German coastal defence doctrine: secure the high ground, block the exits, coordinate fire between positions, and make every advance slow and costly. Positioned on the eastern bluff of the most critical exit at Omaha Beach, it forms a vital link in a network of resistance nests that the Allies must reduce one by one. Its task is to delay, disrupt, and damage the invasion force at one of the beach’s most decisive choke points.
