Omaha Beach, Widerstandsnest 65

Construction and Layout of Widerstandsnest 65

Widerstandsnest 65 is constructed into the coastal bluff above the E-1 draw near Saint-Laurent-sur-Mer. Built in early 1944, its layout reflects the German doctrine of layered, mutually supporting defences within the Atlantic Wall. Though compact, Widerstandsnest 65 incorporates concrete bunkers, trenches, fieldworks, and gun emplacements designed to cover both the beach and the inland valley.

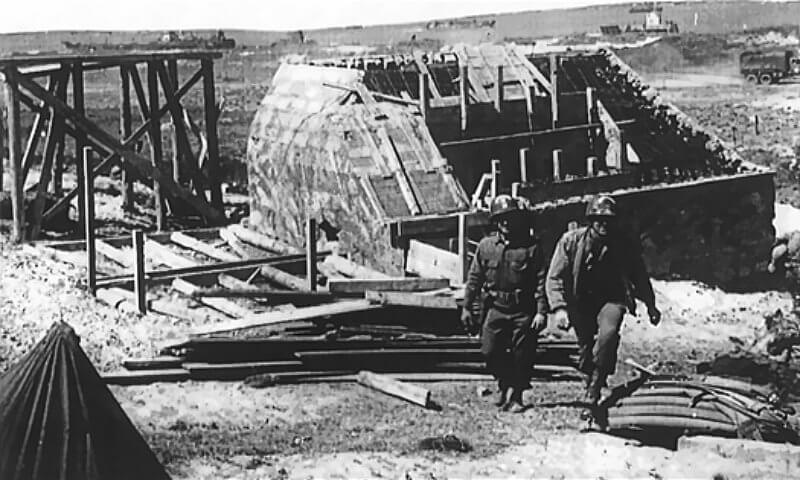

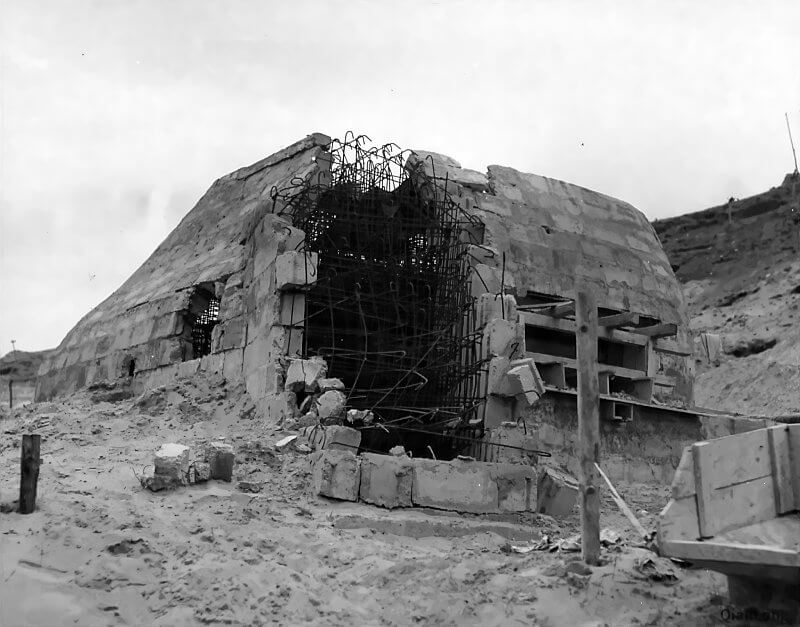

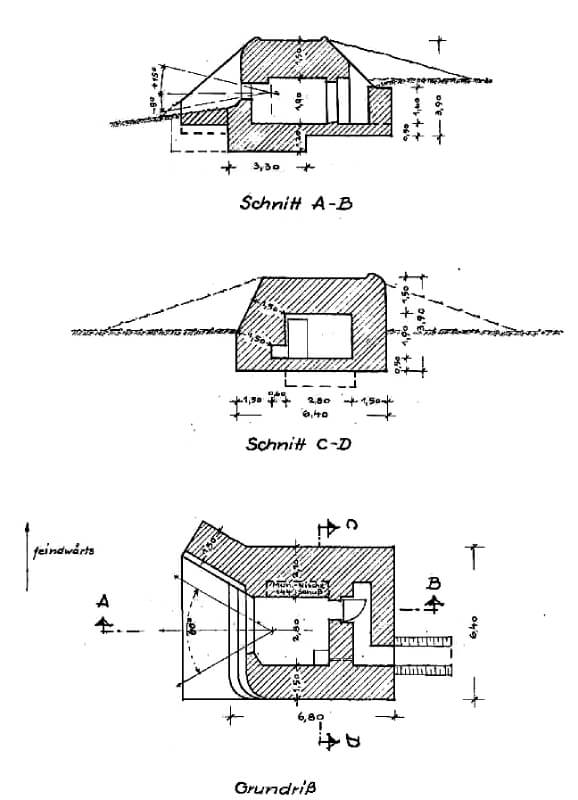

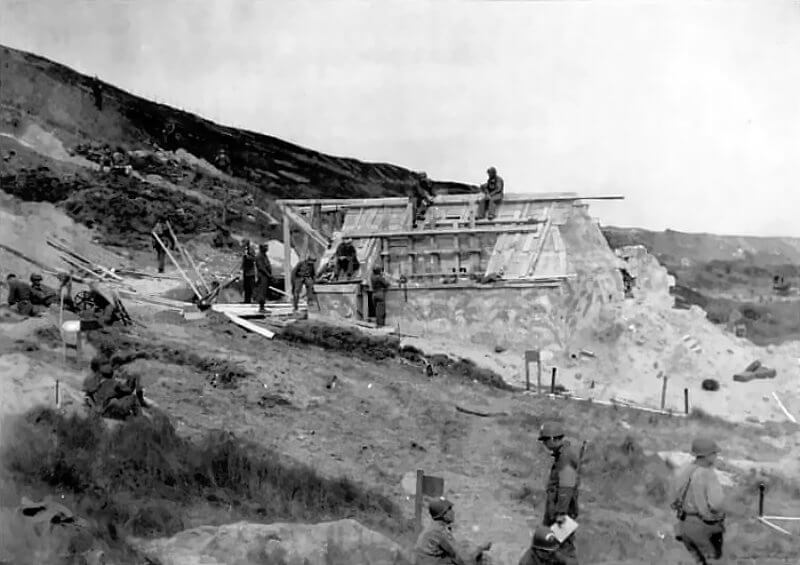

Two Regelbau R667 concrete casemates form the strongpoint’s core. These small, standardised bunkers are designed for anti-tank guns. One R667 is completed by late April 1944. It is positioned near the base of the bluff with its embrasure facing seaward, housing a 5-centimetre Pak gun, with an interior crew space and ammunition storage. A second R667 is under construction by June 1944. It is intended to face along the beach, creating interlocking fire zones with the first casemate.

In addition to these bunkers, Widerstandsnest 65 contains multiple Tobruk pits and open ringstands. One Type 58c Tobruk provides a small, open-topped, one-man firing position. A special open Ringstand Nr. 1694 is built to mount another 5-centimetre gun on a pedestal, offering a wide traverse field. Another ringstand supports an older 3.7-centimetre Pak, a legacy anti-tank weapon still capable of harassing Allied armour and infantry on the beach.

The position also includes several locally constructed shelters and field bunkers. One may be a converted house cellar with reinforced concrete walls up to two metres thick. These provide protection for personnel and likely function as a command post. Communications within the position are facilitated by a trench system interlinking the bunkers, pits, and shelters.

The trench network is carefully laid out, allowing movement between key firing positions while remaining under cover. Trenches are revetted with timber and sandbags and sited to cover both the beach and the E-1 valley road. Rifle pits and machine-gun nests are integrated along these routes to engage infantry approaching from the sand or climbing the slope.

Widerstandsnest 65’s overall structure forms a layered defence. An advanced line of gun pits and trenches sits closest to the beach. The completed R667 casemate occupies the mid-slope, delivering direct fire against landing craft and tanks. Higher up the bluff, mortar positions and additional emplacements provide indirect fire support and rear-area defence.

These elements, trenches, bunkers, ringstands, and shelters, are integrated into a cohesive, tiered defence. Though smaller than larger Stützpunkte, Widerstandsnest 65’s design maximises its position on the slope to inflict heavy losses and delay any breakthrough through the Ruquet draw.

Multimedia

Defensive Systems and Infrastructure of Widerstandsnest 65

The Ruquet Valley, or E-1 draw, is heavily fortified by the Germans to complement Widerstandsnest 65’s firepower. A key obstacle is the large anti-tank ditch running across the valley floor, parallel to the shoreline. This ditch stretches for approximately 800 metres, forming a physical barrier that prevents vehicles from advancing directly inland. Its steep walls and depth force tanks and trucks into narrow, pre-targeted zones, where they can be engaged by Widerstandsnest 65’s guns.

To further slow and channel attackers, Widerstandsnest 65 is surrounded by minefields and barbed-wire entanglements. German records mention minefield sectors coded MF10/11 and MF40, located in front of the strongpoint. These minefields include both anti-personnel mines and anti-tank mines, carefully placed along likely approach routes and landing areas. Thick belts of barbed wire line the valley and the bluff slopes, guiding attacking infantry into kill zones covered by machine-gun and anti-tank fire.

Closer to the beach, a range of obstacles adds another layer of defence. These include wooden stakes, steel Czech hedgehogs, ramps, and explosive posts known as Rommel’s asparagus, fitted with Teller anti-tank mines. These devices are intended to damage landing craft, immobilise vehicles, and force assault troops to land in predictable, dangerous zones under direct fire.

To strengthen close-range defence, automatic flamethrower traps are positioned among the obstacles. These concealed weapons consist of pressurised fuel canisters linked to firing switches inside bunkers. A single trigger can unleash bursts of flame, creating lethal barriers in front of wire or ditches. While it is unclear exactly where Widerstandsnest 65 employs these devices, such systems are common along the Atlantic Wall.

Effective communication and observation underpin Widerstandsnest 65’s defensive network. Field telephone lines connect the strongpoint with neighbouring positions and inland command posts. Buried cables ensure that the garrison can call for artillery support or reinforcements. If telephone lines fail, backup visual signalling methods, such as the light-beam device used at nearby Widerstandsnest 62, might be employed. Within Widerstandsnest 65, a small command post bunker probably houses a field telephone exchange, linking the R667 casemate, mortar positions higher on the hill, and Widerstandsnest 64 across the valley.

Observation is conducted from the slope and high ground behind the bunkers. The elevated bluff provides a commanding view of Omaha Beach and the E-1 draw. From this vantage point, German observers can direct mortar fire or coordinate with inland artillery batteries. Although Widerstandsnest 65 lacks a large, dedicated fire-control bunker, its positioning offers excellent sightlines, allowing its defenders to spot and engage targets with accuracy as they advance from the shoreline.

Armament and Weapons Emplacements of Widerstandsnest 65

Though relatively small, Widerstandsnest 65 is armed with a well-coordinated mix of weapons to defend the E-1 draw. Its firepower is carefully arranged to cover both the open beach and the valley inland, delivering overlapping fields of fire across multiple ranges.

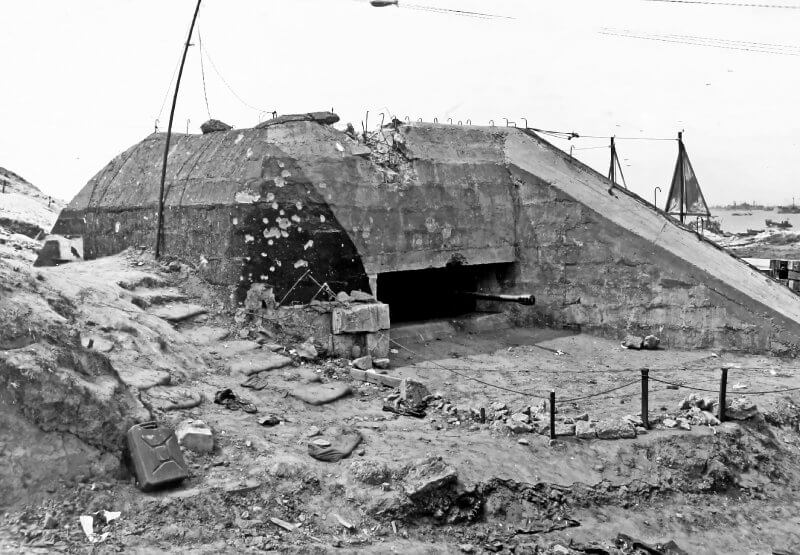

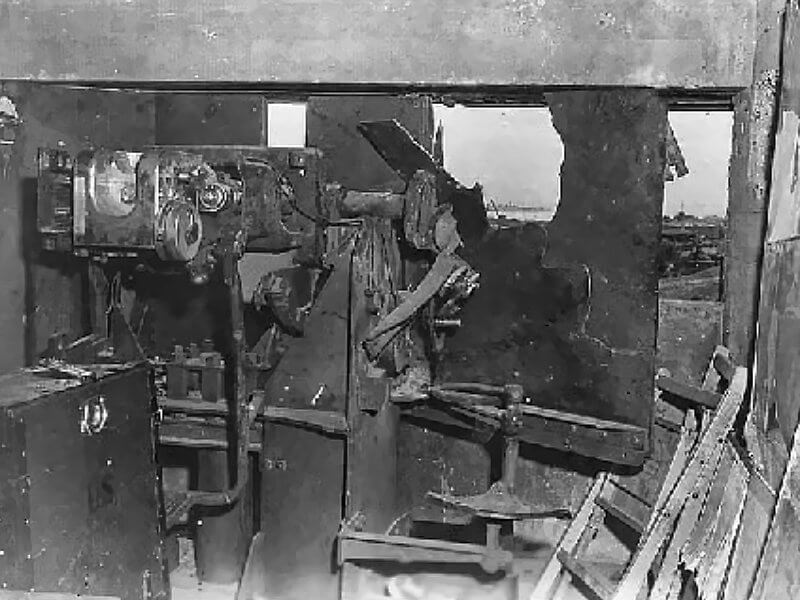

The main weapon is a 5-centimetre anti-tank gun mounted inside a completed Regelbau R667 casemate. This gun is likely either a 5-centimetre Pak 38 or a repurposed 5-centimetre KwK L/60 tank gun on a fixed pedestal mount. Its embrasure faces west across the Easy Red sector, allowing it to fire along the beach and into the draw. It is intended to engage landing craft, light armour, and infantry exiting the sand.

A second 5-centimetre gun is also present at Widerstandsnest 65. It is deployed in an open emplacement, likely mobile and intended to be mounted in a second, unfinished casemate or used from a field position. Together, the two guns create interlocking fire zones, reinforcing the frontal defence.

Further up the slope, concealed behind the position, lies a heavier anti-tank gun, an emplaced 7.5-centimetre Pak 40. This standard 75-millimetre German AT gun is positioned to cover the road inland toward Saint-Laurent. Camouflaged under netting or foliage, it delivers long-range fire down the valley, targeting vehicles that bypass the anti-tank ditch and reach the draw exit.

To support these direct-fire weapons, Widerstandsnest 65 is equipped with mortars for indirect fire. Two 50-millimetre light mortars (5 cm Granatwerfer) are installed in Tobruk pits on the bluff. These tubes are likely German Gr.W.36 models or captured 5-centimetre weapons such as the Gr.W.201(b), of Belgian or French origin. Their role is to drop fragmentation bombs onto the beach and across dead ground behind the ditch, where direct fire cannot reach. Although heavier 8-centimetre mortars may be available to the supporting company, only the two 5-centimetre tubes are confirmed at Widerstandsnest 65.

For close-range defence, the strongpoint fields a range of machine guns. At least one MG 34 or MG 42 is mounted in a fixed Tobruk or ringstand with a wide traverse arc. Others are deployed in trenches, dugouts, or revetments, where they cover barbed-wire approaches and landing zones. A known Lc/116-type Tobruk supports a schweres MG 34 (heavy machine gun on a mount), while light machine guns cover overlapping sectors of the beach and valley slopes. The position is described as having “many trenches and machine guns,” suggesting a perimeter bristling with automatic fire.

The infantry also carry rifles, submachine guns, and hand grenades for trench defence. Anti-tank weapons such as Panzerfausts or Panzerschrecks are likely available for use against Allied armour at close range. These short-range launchers give the garrison a last-ditch defence against tanks breaching the wire.

The area may also be pre-registered for artillery support. Observers at Widerstandsnest 65 could call down fire from inland batteries using 75-millimetre or 105-millimetre howitzers, reinforcing the strongpoint if the draw becomes heavily contested.

Among the passive and reactive weapons, Widerstandsnest 65 is believed to be fitted with automatic flamethrower traps. These are pressurised fuel devices hidden in the wire obstacles, connected by electric cables to a firing switch in a bunker. When triggered, they release bursts of fire to incinerate any infantry attempting to penetrate the minefields or scale the ditch. Though specific placements are not confirmed, this system is documented across the Atlantic Wall and was likely present here.

All these weapons are designed to function in combination. The 5-centimetre guns destroy light armour and craft at short range. The 7.5-centimetre gun provides long-range coverage over the draw. Mortars shell infantry taking cover near the beach. Machine guns and rifles sweep the open sand and ditch. The result is a continuous and overlapping fire plan stretching from the shoreline to several hundred metres inland.

Widerstandsnest 65’s firepower is structured to delay, disorganise, and break up any assault through the Ruquet draw. Each weapon covers gaps left by another, creating a cohesive and deadly defensive system.

Multimedia

Garrison and Organisation of Widerstandsnest 65

Widerstandsnest 65 is manned by a platoon-sized garrison drawn primarily from the Kompanie 10, Grenadier-Regiment 726, part of the German 716. Infanterie-Division. This unit consists of static infantry assigned to permanent coastal defence. In early 1944, reinforcements from the 352. Infanterie-Division begin arriving in the Omaha sector. As a result, by June, some troops from 352. Infanterie-Division, especially experienced Non-Commissioned Officers and younger infantrymen, are likely integrated into local strongpoints, including Widerstandsnest 65.

The total manpower at Widerstandsnest 65 is estimated at 20 to 25 soldiers. Contemporary accounts suggest the garrison includes around twenty German troops. The position is typically led by a junior officer or a seasoned Oberfeldwebel (senior sergeant). The garrison is divided into weapon teams, each section commanded by a subordinate Non-Commionned Officer or squad leader. These small teams operate the casemate gun, the second anti-tank gun, the mortar pits, and the machine-gun positions in the trenches.

The 5-centimetre casemate gun crew consists of five or six men: a commander, gunner, loader, and ammunition handlers. The second 5-centimetre anti-tank gun, mounted in an open emplacement, is operated by a similar team and likely coordinated with the casemate for overlapping fields of fire. Each of the two 5-centimetre mortar Tobruks is manned by a crew of three to four, typically a gunner, assistant gunner, and one or two ammunition bearers. Several two-man MG 34 or MG 42 teams occupy trenches and Tobruks to cover close-range approaches.

The remainder of the garrison serve as riflemen, sentries, or support personnel. Some act as ammunition carriers or field telephone operators, relaying messages between Widerstandsnest 65 and nearby positions. Communication trenches allow messengers to move under cover in the event of severed telephone lines.

Training and discipline within the garrison are mixed. Troops from the 716. Infanterie-Division are often older reservists or conscripts from occupied territories. In contrast, the 352. Infanterie-Division men are younger, mobile, and more recently trained. By June 1944, many defenders are teenagers with limited combat experience. However, some Non-Commissioned Officers have seen heavy fighting on the Eastern Front and serve as the backbone of the defence.

Despite this varied background, the garrison is expected to hold the line and maximise the effectiveness of the prepared fortifications. Crews likely rehearse their fire plans using range cards pre-marked with target zones on the beach and draw. Flares, whistles, and other pre-arranged signals are used to trigger mines, coordinate crossfire, or request artillery support.

The command post within Widerstandsnest 65 houses a field telephone, likely an FF33 model, connecting the position to company headquarters inland. This line also links to adjacent resistance nests, including WN64 across the draw. The local command post at Widerstandsnest 63 may also be part of this network, coordinating the broader defence of the E-1 and E-3 draw sectors. If cables are cut during bombardment, runners deliver messages via protected trench paths.

Supplies are brought in from rear areas during the night in the days leading up to the invasion. Ammunition, food, and equipment are moved under cover of darkness to avoid detection by Allied reconnaissance. The defenders live in underground shelters or fortified cellars within the strongpoint when not manning their positions.

Although lightly manned and under increasing pressure in the final days before D-Day, Widerstandsnest 65’s garrison is prepared to resist. Supported by interlocking fields of fire, minefields, and reinforced bunkers, they form a cohesive and dangerous part of the German coastal defence network at Omaha Beach.

Widerstandsnest 65’s Role in the Omaha Beach Defence Strategy

Widerstandsnest 65 plays a pivotal role in the German defensive plan for Omaha Beach. The entire beach sector is defined by several narrow valleys, or “draws”, which provide the only natural exits inland. These draws are seen by German planners as critical choke points. If the Allies are held at the beach or at the mouth of the draws, they cannot advance into Normandy. As such, Widerstandsnest 65 is positioned to guard one of these vital exit routes, the E-1 draw at Ruquet Valley.

Widerstandsnest 65 sits on the western side of the valley, facing the Easy Red sector. It forms a mutually supporting defensive pair with Widerstandsnest 64, which lies on the eastern plateau opposite. Widerstandsnest 64 is armed with a 7.62-centimetre Soviet field gun, machine guns, and a FlaK weapon, giving it overlapping fire into the valley. Together, Widerstandsnest 64 and Widerstandsnest 65 create a deadly crossfire zone within the draw. Any Allied force attempting to penetrate this exit is exposed to fire from both flanks.

The main 5-centimetre gun in Widerstandsnest 65’s R667 casemate is not aimed directly seaward but aligned east-northeast to fire along the length of Easy Red beach. This enfilade fire sweeps the surf zone, catching troops moving parallel to the shoreline. The unfinished second casemate at Widerstandsnest 65 is intended to face the opposite direction, westward, allowing for similar flanking fire toward the Les Moulins draw and neighbouring strongpoints.

This design exemplifies the German strategy of overlapping fire lanes. Each resistance nest covers not only its immediate front but also supports adjacent sectors. Widerstandsnest 65’s fire overlaps with that of Widerstandsnest 62 further east and with Widerstandsnest 67 further west. These strongpoints cover the gaps between draws, ensuring no part of the beach is undefended. For example, Widerstandsnest 67’s 88 mm gun can fire into the Easy Green and Dog Red sectors, indirectly aiding Widerstandsnest 65. Likewise, Widerstandsnest 65’s machine guns and cannons help cover the space between Widerstandsnest 64 and Widerstandsnest 66.

Widerstandsnest 65 is integrated into a layered defensive network typical of the Atlantic Wall. The first layer consists of beach obstacles and mines placed offshore to damage landing craft. The next includes obstacles and wire along the shoreline to slow infantry. Widerstandsnest 65, positioned at the edge of the bluff, forms the next layer, engaging troops directly as they land and attempt to push inland. Behind it, secondary weapons like mortars and the 75-millimetre gun on the hillside engage deeper targets. Even if attackers breach the front-line defences, they must still overcome the anti-tank ditch and concealed rear positions before reaching open ground.

The strongpoint is also linked to the broader German command structure. Its observers are capable of calling in fire from inland artillery batteries, including 105-millimetre howitzers from Artillery Regiment 352. Telephone lines connect Widerstandsnest 65 to regimental or battalion headquarters, enabling coordination and reinforcement if neighbouring positions fall. Should communications be disrupted, runners use protected paths to carry orders or status reports.

In summary, Widerstandsnest 65 is a central node within the German defence grid at Omaha Beach. It protects one of the beach’s key exits and provides flanking fire across several sectors. With reinforced concrete bunkers, interlocking trench systems, anti-tank guns, mortars, and minefields, it is designed to delay and bleed any Allied force attempting to reach the inland road network. By coordinating with Widerstandsnest 64 and adjacent strongpoints, Widerstandsnest 65 ensures that the E-1 draw remains impassable without concentrated effort. By June 1944, its weapons are ranged, its obstacles prepared, and its garrison ready to resist, to serve as a knot of hardened resistance within the Atlantic Wall.
